Author: Site Editor Publish Time: 2026-10-21 Origin: Site
Consumer electronics manufacturers continually work to reduce product weight without sacrificing structural integrity, thermal performance, or assembly precision. As devices become thinner and more compact, the design of internal metal components becomes increasingly important. Aluminum stamping parts offer a manufacturing option for selected brackets, shields, covers, and other thin-metal structures that need to combine low weight with efficient production.
Aluminum is attractive because of its relatively low density, useful thermal conductivity, and ability to be formed into different geometries. However, manufacturing a reliable stamped aluminum component involves more than selecting a lightweight metal. Alloy condition, sheet thickness, bend geometry, dimensional tolerance, and surface requirements must all match the intended application. For OEM manufacturers, understanding these factors is essential when deciding whether stamping is the right process for a particular electronic product.
Weight reduction is one of the main reasons aluminum is considered for electronic components. With a density of approximately 2.7 g/cm³, aluminum is substantially lighter than common steels. When a suitable structural design allows aluminum to replace a heavier material, the reduction in component mass can help manufacturers meet overall product weight targets.
Weight alone, however, does not determine component performance. A thin internal bracket must still maintain its position during assembly and use, while a cover may need sufficient rigidity to avoid deformation. Designers therefore evaluate the relationship between material thickness, strength, formed geometry, and supported loads.
Aluminum also offers useful thermal conductivity for components involved in heat transfer. In some applications, a formed aluminum part can help conduct heat away from nearby components, although its effectiveness depends on contact conditions, surface area, and the overall thermal design. Stamping does not automatically turn an aluminum component into an effective heat sink.
Another advantage is manufacturing repeatability. When a design is suitable for stamping and production quantities justify the tooling investment, aluminum metal stamping can form repeated features efficiently with consistent geometry.
Aluminum stamping is used for components whose functional requirements can be achieved through sheet-metal cutting and forming. The process is particularly relevant to designs that feature relatively thin sections, repeated openings, bends, flanges, or other features that can be produced using dedicated tooling.

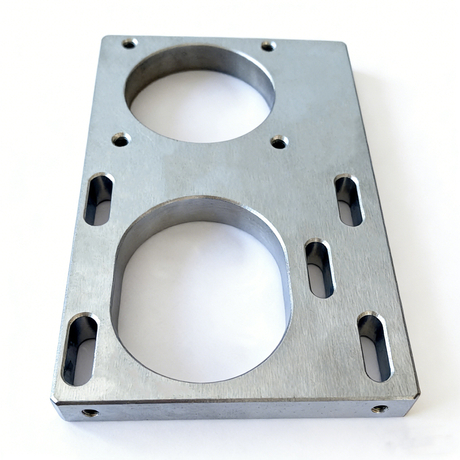

Internal brackets help position circuit boards, sensors, modules, and other components within an electronic product. Their design may include mounting holes, locating tabs, formed edges, or stiffening features that improve assembly stability.
For such parts, the critical requirements usually involve hole position, flatness, and the relationship between mounting surfaces. Even a small dimensional variation may become significant when a bracket must align with several fixed fastening points inside a compact enclosure.
Stamping can be an efficient option when these features are repeated across substantial production quantities. The design should also account for the fact that thin aluminum parts may require additional stiffening geometry to provide adequate rigidity.
Electronic devices sometimes require metal covers to protect internal components or contribute to electromagnetic shielding. Aluminum can be considered for certain shielding structures, depending on conductivity, electrical continuity, enclosure geometry, and the frequencies involved.
A stamped cover may include formed walls, attachment tabs, and positioning features. Its functional performance depends on more than material selection: seams, contact surfaces, openings, and the surrounding assembly can significantly influence shielding effectiveness.
For larger or more complex stamped aluminum enclosures, manufacturers may combine stamping with other fabrication or assembly operations. Some enclosure geometries are better suited to laser cutting and bending, while others require CNC machining or die casting.
Aluminum's thermal properties make it relevant to heat-spreading plates and selected thermal management structures. Thin formed components can provide a useful connection between heat-generating assemblies and other parts of the thermal path.
Nevertheless, the suitability of stamping depends on the thermal requirement. A flat heat spreader or simple formed plate may be practical, while a complex finned structure may require extrusion, machining, or another manufacturing method.
Our electronic precision manufacturing services support precision metalworking and tooling requirements for electronic equipment. By evaluating the geometry and intended function of each component, we can help identify the manufacturing processes that best match the design.
Different aluminum alloys offer different combinations of strength, corrosion resistance, formability, and surface-finishing behavior. A high-strength alloy is not automatically the best choice for a complex stamped component because increased strength may come with reduced formability.
For precision aluminum stamping, the material condition is especially important. The same alloy family can respond quite differently to bending and forming depending on its temper and processing history.
Aluminum-manganese alloys, including commonly used 3000-series materials, often provide useful formability and corrosion resistance. Certain grades may be considered for covers and formed components where moderate strength is sufficient.
The selected grade and condition should be evaluated against bend severity, appearance requirements, and the intended environment.
Many 5000-series aluminum-magnesium alloys offer a favorable combination of formability, strength, and corrosion resistance. Grades such as 5052 are commonly considered for sheet-metal applications involving bends, covers, and structural components.
However, the allowable bend radius depends on thickness and temper. A design that forms successfully in one material condition may crack or exhibit unacceptable springback in another.
Heat-treatable 6000-series alloys, including 6061, are widely used in structural and machined components. They can provide useful mechanical properties, but certain hardened tempers are less suitable for demanding sheet-forming operations.
When a stamped component requires significant bending, engineers must evaluate whether the selected alloy and temper can achieve the required geometry without cracking. In some designs, another alloy family or a different manufacturing process will be more practical.
Our material selection resources include aluminum and other metals commonly used in precision manufacturing. The most suitable alloy should be selected by considering component function, forming feasibility, surface requirements, and production cost together.
The success of custom aluminum stamping depends heavily on how the component is designed. Thin aluminum can be formed efficiently, but poorly positioned holes, sharp corners, and aggressive bends may cause distortion or cracking.
A bend that is too tight for the selected aluminum alloy and temper can create excessive tensile strain along the outer surface. The risk is particularly important when the material has limited formability or when the bend crosses a weakened section.
The orientation of a bend relative to the rolling direction can also affect forming behavior. Engineers should therefore review material grain direction and bend requirements when planning the blank layout.
Mounting holes located too close to bends or outer edges may become distorted during forming. This can affect fastener fit and assembly alignment, particularly in compact electronic assemblies where tolerances are tightly controlled.
Providing suitable spacing between holes, bends, and external edges improves manufacturing feasibility. When space restrictions make these allowances difficult, the tooling design may need to incorporate additional measures to control deformation.
Thin aluminum components can distort during punching, bending, or secondary processing. This matters when a bracket or cover must make consistent contact with a flat mounting surface.
A well-planned forming sequence, suitable material selection, and targeted inspection help maintain dimensional stability. In some cases, formed stiffening ribs or flanges can improve component rigidity without requiring a large increase in thickness.
These considerations are especially relevant when the part includes several functions within a small area. Early design review can reduce the need for costly tooling modifications after the final geometry has been approved.
Not every aluminum component should be stamped. The best manufacturing method depends on geometry, production volume, dimensional requirements, and the expected frequency of design revisions.
Factor | Aluminum stamping | CNC machining | Flexible sheet metal fabrication |
|---|---|---|---|
Suitable geometry | Repeatable sheet-metal shapes and formed features | Complex solid or precision-machined features | Sheet-metal profiles, bends, and larger panels |
Initial tooling | Dedicated tooling may be required | Generally lower dedicated tooling investment | Usually lower for basic cutting and bending |
High-volume production | Often highly efficient | Depends on machining time | Depends on operations and handling |
Design modifications | May require die changes | Often handled through programming changes | Often relatively flexible |
Material removal | Blanking scrap depends on layout | Cutting chips can be substantial | Depends on nesting efficiency |
Typical advantage | Efficient repeated part production | Geometric flexibility and precision features | Flexible fabrication for varied quantities |
For example, a thin bracket with repeated holes and bends may be suitable for stamping when demand is stable. A compact aluminum housing containing complex pockets, threaded features, and tightly controlled three-dimensional surfaces may be better suited to CNC machining.
Similarly, a large enclosure with a relatively simple folded structure may be more practical to produce using sheet metal fabrication services. Laser cutting and bending can offer flexibility, especially during product development or when production quantities do not justify dedicated stamping dies.
For more detailed guidance on electrical housings, our article about precision sheet metal fabrication for electrical enclosures discusses the broader considerations involved in producing accurate metal enclosure components.
Surface requirements for consumer electronics metal parts vary with the component's location and function. An internal bracket may prioritize edge quality and dimensional consistency, while a visible housing may also require controlled color, texture, and cosmetic appearance.
Anodizing is commonly considered for suitable aluminum components where improved surface durability or appearance is desired. However, the anodized layer can affect dimensions and electrical contact behavior. If the component requires conductive contact surfaces, the finishing specification must account for those areas.
Other finishing options may include blasting, suitable coatings, or localized processing, depending on the intended function. Sharp edges and burrs should be controlled before finishing because subsequent surface treatments do not necessarily eliminate underlying edge defects.
Inspection should focus on functional dimensions, including hole position, bend angle, mounting-surface flatness, and any features that interact with adjacent components. For cosmetic parts, inspection criteria should also define acceptable surface imperfections and visual consistency.
HX offers metal stamping services alongside other precision manufacturing processes. By considering design, tooling, finishing, and inspection together, we can evaluate how a proposed aluminum component should be manufactured to meet its intended requirements.
OEM buyers developing new aluminum parts can share their drawings, material preferences, and expected quantities through our custom manufacturing inquiry page. Identifying the most appropriate process early in development can simplify production planning and help avoid unnecessary manufacturing costs.
Aluminum stamping parts can support lightweight consumer electronics by providing efficient solutions for selected brackets, shields, covers, and thin-metal structural components. Their benefits depend on matching the alloy, material condition, and component geometry to the intended manufacturing process.
For OEM manufacturers, the most effective approach is to evaluate weight, structural performance, production volume, surface requirements, and design flexibility together. When aluminum stamping is selected for the right application, it can provide repeatable component geometry while supporting practical production costs and assembly requirements.
Selected 3000-series and 5000-series alloys are commonly considered for their formability and other useful properties. Certain 6000-series materials may also be suitable, but their forming behavior depends strongly on temper and the required geometry.
Aluminum stamping can offer lower per-part costs for suitable designs produced in substantial quantities, but it usually requires greater initial tooling investment. CNC machining may be more economical for prototypes, smaller batches, or complex solid geometries.
Yes, some thin-metal housing designs can be stamped. However, housings with complex internal cavities, thick sections, or intricate machined features may be better suited to CNC machining, die casting, or other fabrication methods.
A useful quotation request includes 2D or 3D drawings, the preferred aluminum alloy and temper, material thickness, required tolerances, surface finish, expected order quantities, and relevant assembly requirements. This information helps determine stamping feasibility and the associated tooling requirements.
