Dongguan Hongxia, Die Casting Excellence from Molten Metal to Precision!
Lower tooling costs, 99.5% quality rate, 72-hour rapid prototyping – your trusted manufacturing partner.

12

High-Pressure Die Casting

Aluminum/Zinc/Magnesium alloys with wall thickness as low as 0.5mm
Vacuum-assisted casting: Porosity reduction >60%
12-1

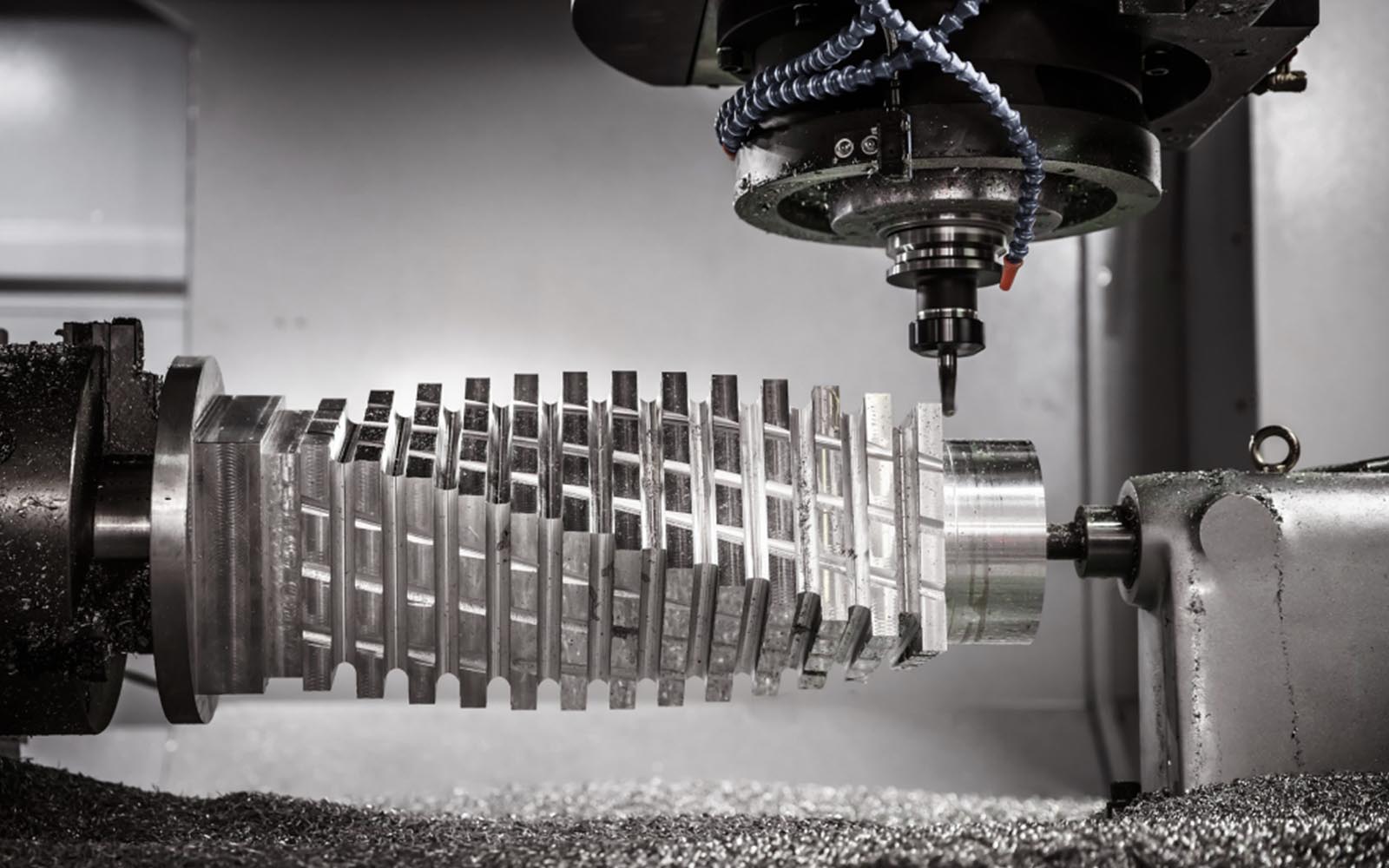

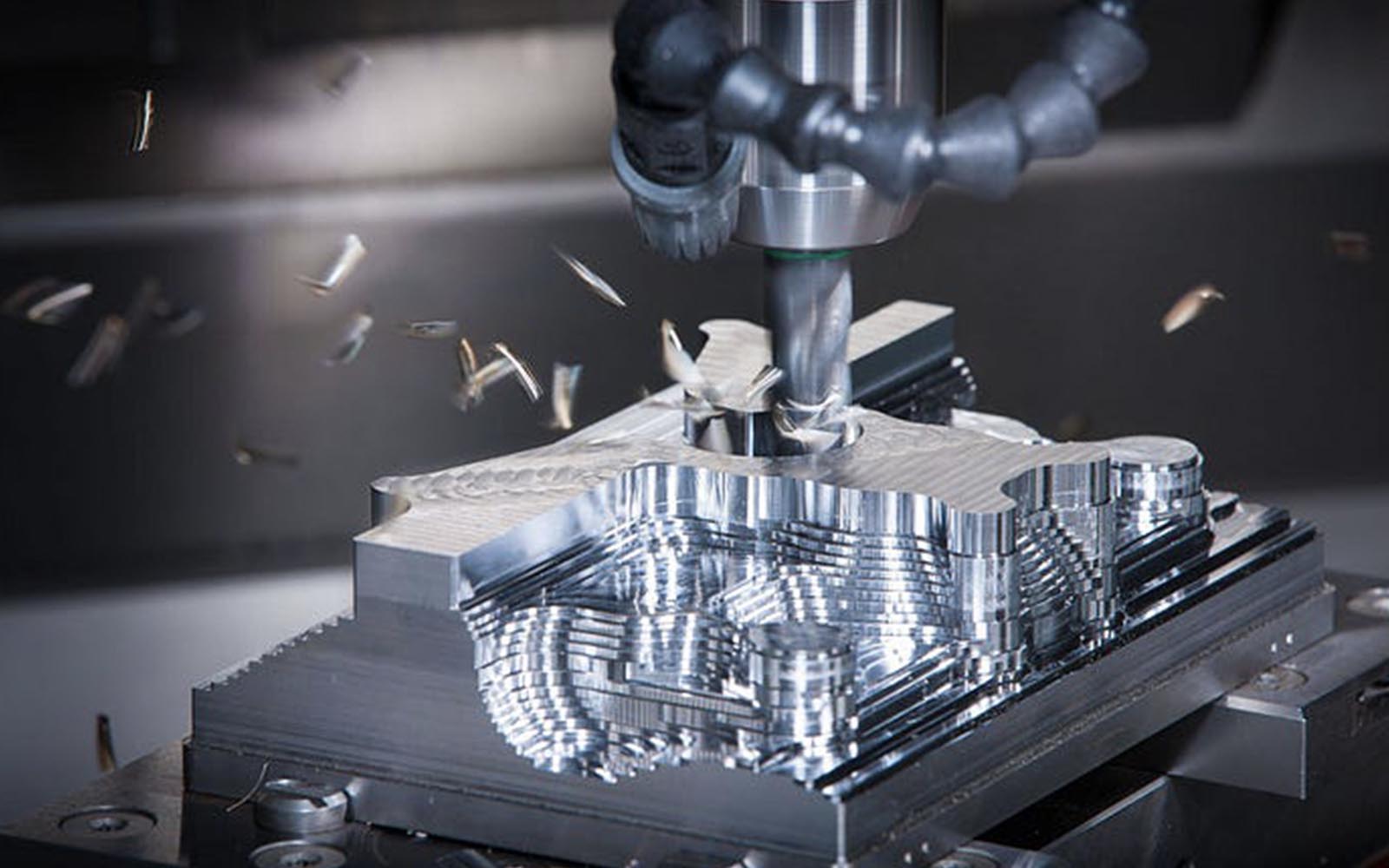

Precision CNC Machining

5-axis machining centers achieve ±0.05mm tolerance for critical features
Dedicated fixtures for complex die-cast geometries
12-2

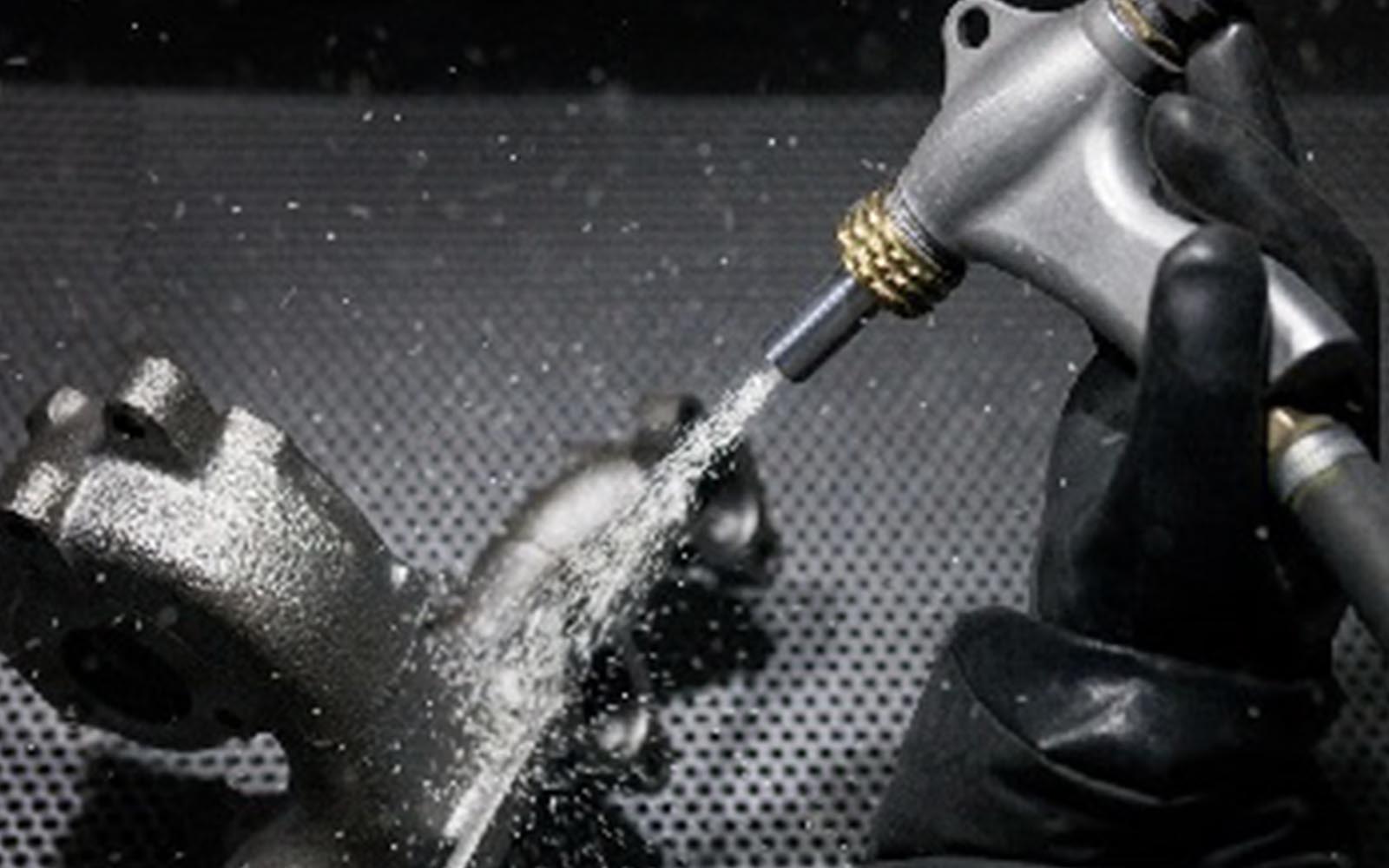

Advanced Surface Finishing

Anodizing (Color customization) | Nanocoatings (Anti-corrosion 1000h+)
Mirror Polishing (Ra≤0.2μm) | Laser Etching (0.1mm resolution)
12-3

Tooling & Mold Making

H13 steel molds with 300,000+ shots lifespan
Conformal cooling design: Cycle time reduction 25%
12-4

Quality Assurance

X-ray scanning: Detect 0.3mm³ internal defects
CMM + 3D scanning: Full dimensional verification

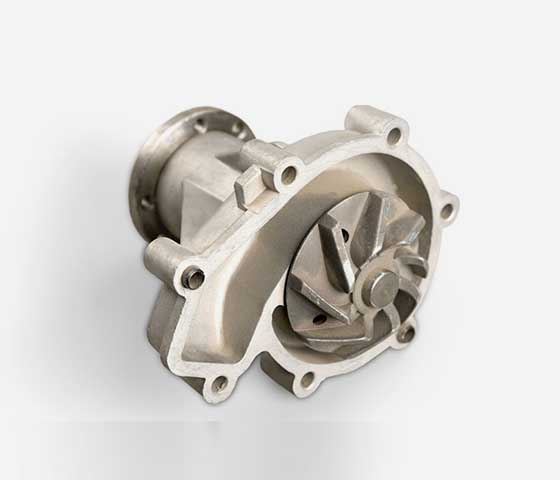

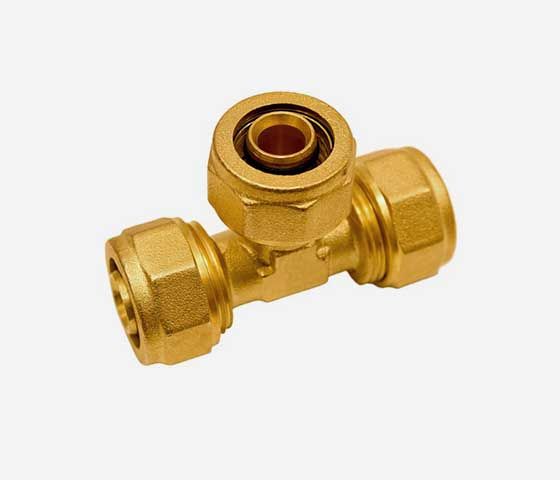

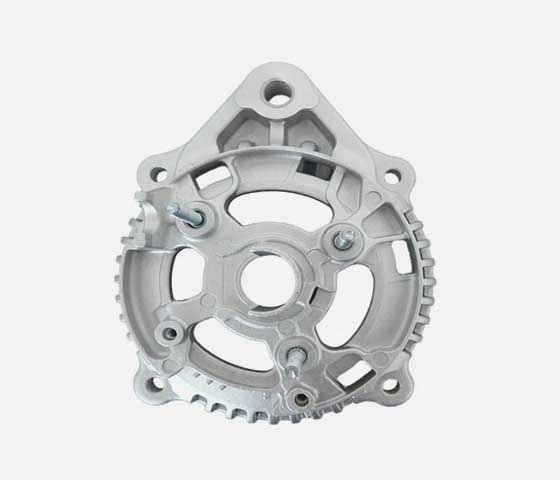

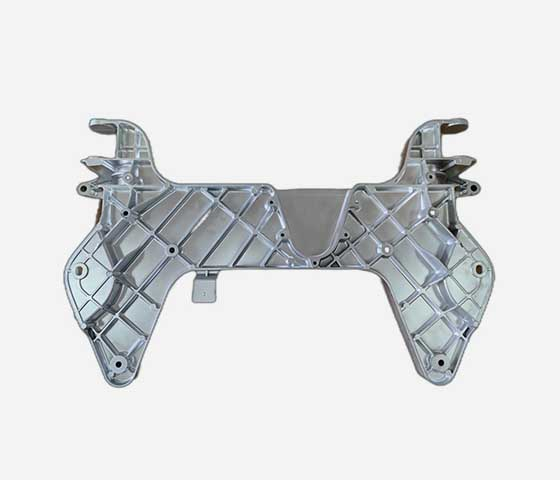

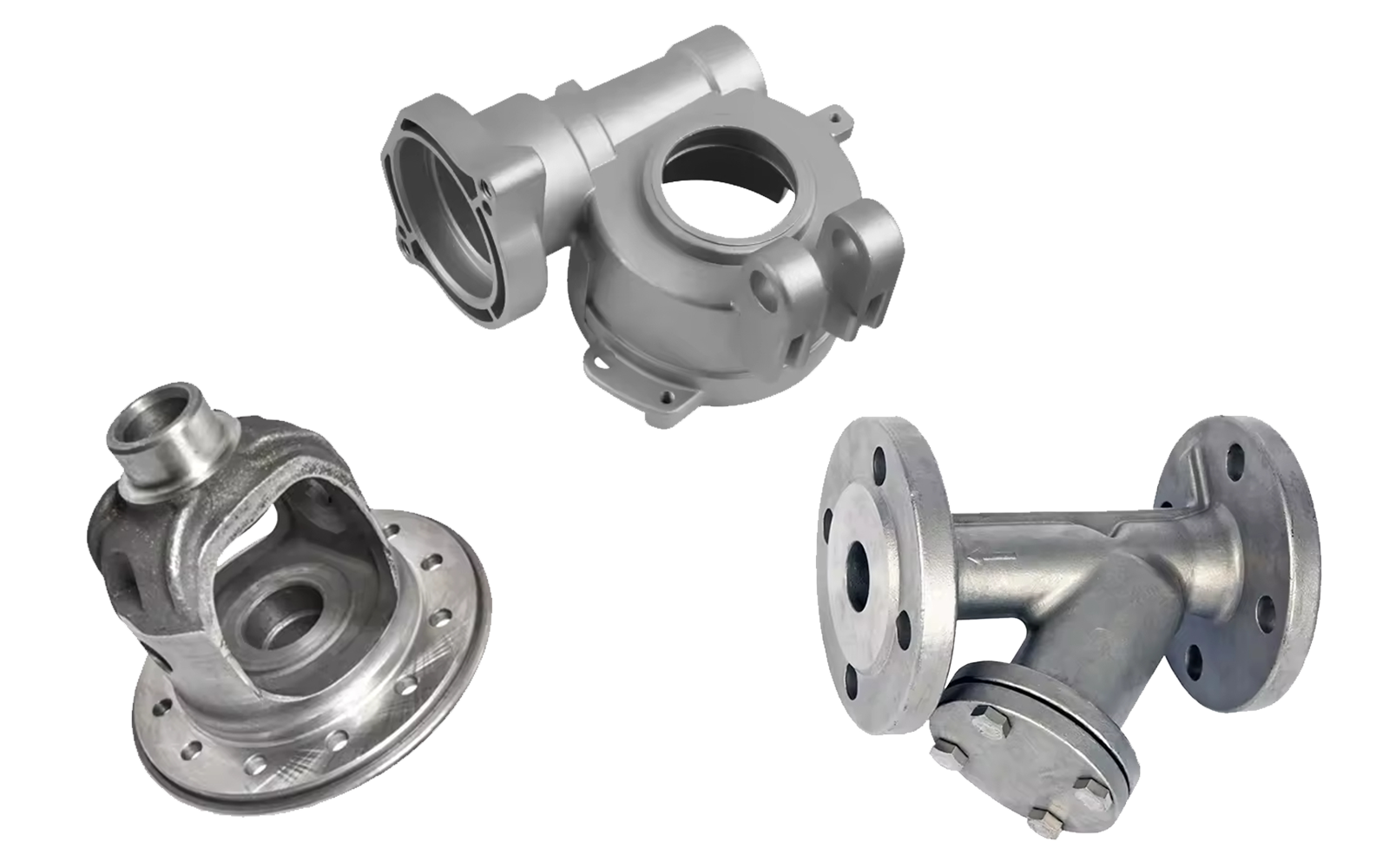

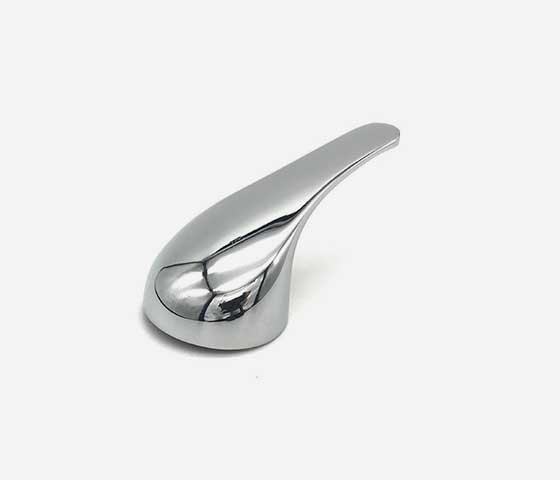

Case Study of Processed Products
Advantages and Challenges of Pressure Die Casting

Fast Response

Upload 3D data and get a quote within 1 minute.

Professional Support

Expert DFM analysis & prototyping support.

On-demand Production

Flexible batch production (1 to 100,000+ units), supporting your business at every stage.

Material Selection

Access over 50 certified materials, suitable for a wider range of industries.

High Precision Tolerances

Tight tolerances down to ±0.001 mm.

Quality Assurance

Backed by ISO 9001 & IATF 16949 certifications, delivering high-quality products to our customers.
Pressure Die Casting Process
We have an excellent technical team, which can be designed according to customers requirements.
1

1. Requirement Co-design

DFM Drives Zero-Defect Starting Point
Engineers provide die-casting-specific DFM solutions through 1v1 3D drawing analysis:
Optimize draft angles/wall thickness/ribs —— Reduce shrinkage risk by 30%
Intelligent simulation of metal flow —— Predict porosity location, extend mold life by 50%
2

2. Intelligent Die-Casting Programming

Dynamic Parameters for Precise Form Control
Cloud-based die-casting platform calculates optimal process chain in real-time:
Three-stage injection control: Slow-speed 0.3m/s degassing → High-speed 6m/s filling → Intensification 100MPa feeding
Precise mold temperature zoning ±5℃ —— Eliminate flow marks/cold shuts
3

3. Ultra-Clean Preprocessing

Dual Safeguards for Quality Assurance
Alloy melt purification:
Argon degassing + density testing —— Hydrogen content ≤0.1ml/100g
Intelligent mold maintenance:
Automated nano-coating spray → Laser-calibrated mold temperature → Mold clamping gap <0.03mm
4

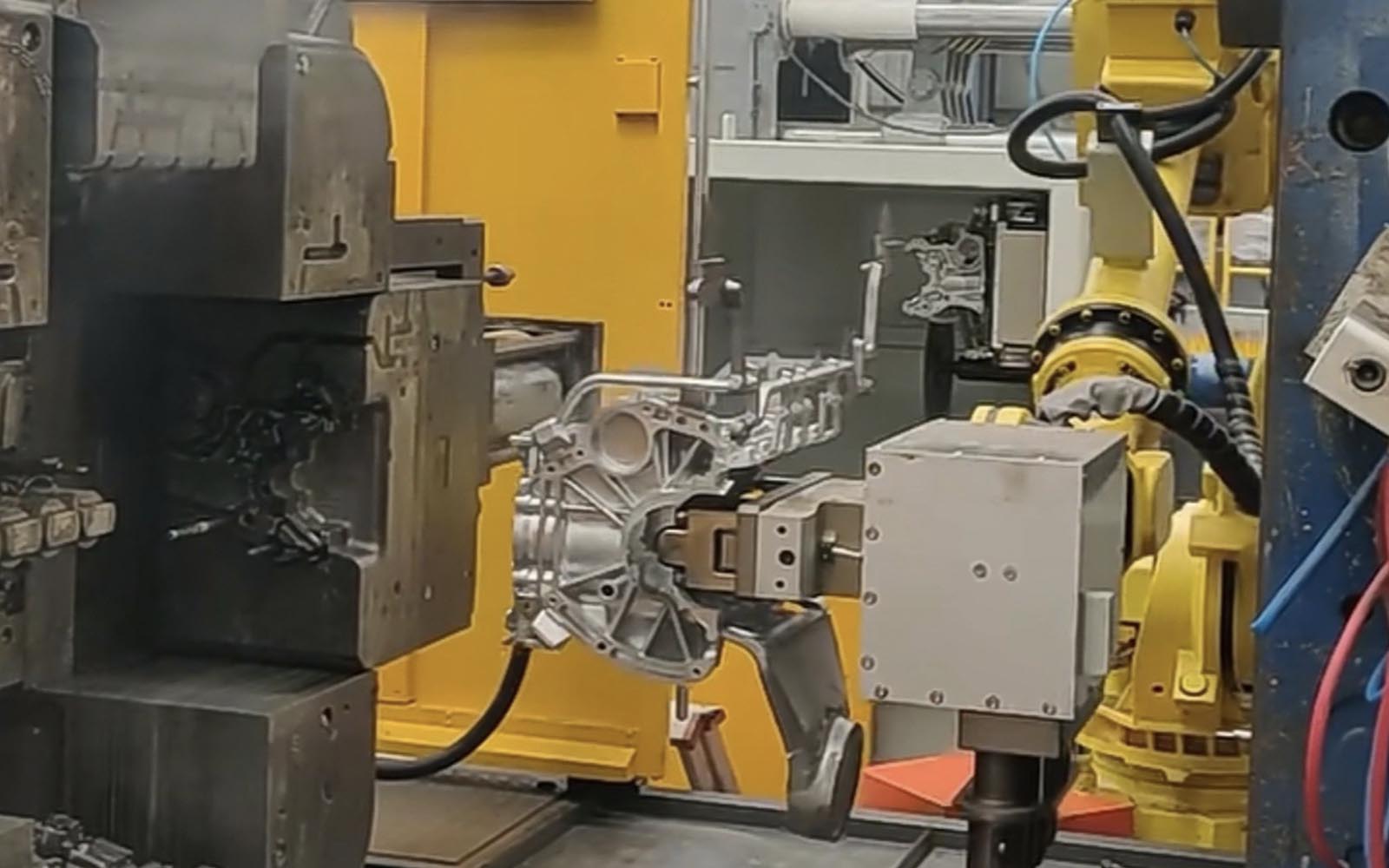

4. High-Pressure Precision Forming

10,000-Tonne Integrated Die-Casting
Fully automated die-casting island execution:
1200℃ molten metal injected in 3s → 1200T clamping force maintains form → Water-cooling system rapid cooling
Micron-level precision control:
Thin-walled parts ±0.15mm tolerance | Surface Ra1.6μm no grinding required
19-7

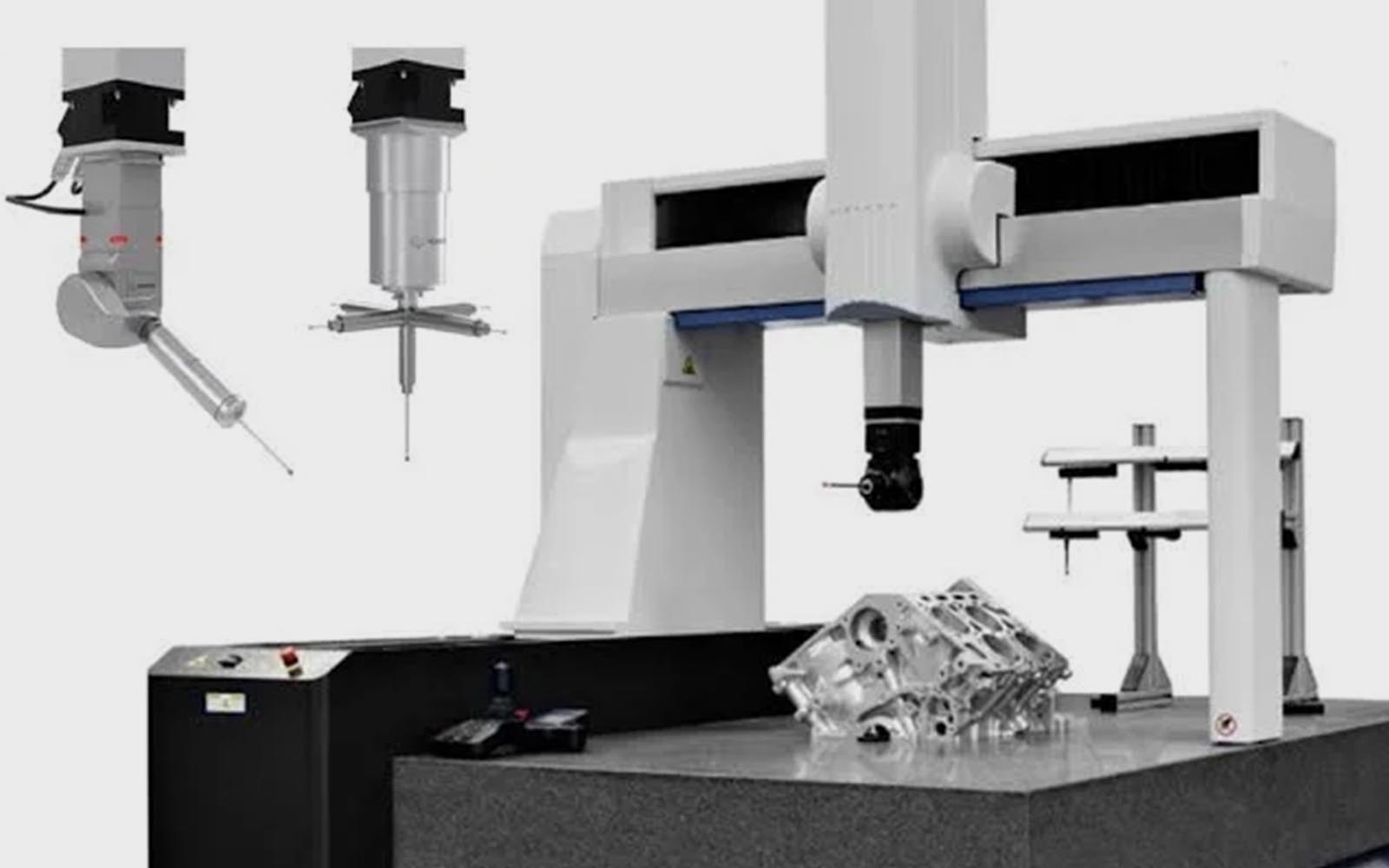

5. Full-Dimension Quality Inspection

X-ray + CMM Dual Assurance
Internal defect scanning:
Industrial CT layered detection —— Porosity identification accuracy 0.2mm³
Zero-tolerance dimensional control:
Online CMM measurement → 100% key dimension comparison → Automatic machine lock for 0.05mm deviation
6

6. Value-Added Post-Processing

Functional & Aesthetic Dual Enhancement
One-stop surface solutions:
High-gloss diamond cutting → Nano-electroplating anti-corrosion (salt spray test 1000h+)
Medical-grade passivation | Custom color anodizing
Die Casting Materials Introduction
The selection of materials directly affects the performance, durability and application fields of die castings. We offer a full range of alloy options, precisely meeting different strength, accuracy and production requirements! Here are the typical materials commonly used in die casting services:
Introduction to Surface Treatment of Pressure Die Casting Parts
We provide essential surface treatments specifically engineered for die cast parts, balancing functionality, aesthetics and cost-effectiveness for high-volume production.
CLIENTS TESTIMONIALS
What Our Customers Say?
  • German Customer: Customized auto parts project
  • US Customer: Automation equipment upgrade cooperation
  • Southeast Asian Customer: Bulk purchase of hardware products
FAQs of Pressure Die Casting
  • Do you have a minimum order quantity?
    加 Created with Sketch.
    形状 Created with Sketch.
    NO! – No minimum quantity! We provides rapid prototypes and short to medium-run production machining services.
  • What general tolerances can you achieve?
    加 Created with Sketch.
    形状 Created with Sketch.
    General CNC Machining Tolerances on metal to +/- 0.005" (+/- 0.127 mm) following ISO 2768 unless otherwise specified. CNC Plastics and composites will be +/- 0.010”(+/- 0.254 mm).
  • What type of design files do you accept for quoting?
    加 Created with Sketch.
    形状 Created with Sketch.
    For the 3D drawing, we would prefer STEP, IGES, or X_T format. For the 2D drawing, we would prefer PDF format there are tolerances with the dimensions if possible.
  • What shall we do if we don't have drawings?
    加 Created with Sketch.
    形状 Created with Sketch.
    Please send your sample to our factory, then we can copy and provide you better solutions. lf send us pictures or drafts with dimensions(Length,Height, Width), CAD or 3D file will be made for you.
  • What precision tolerances can you achieve?
    加 Created with Sketch.
    形状 Created with Sketch.
    CNC Precision Machining Tolerances down to ±.0002" (0.005mm).We can manufacture and inspect to tight tolerances per your drawing specifications
  • Will my drawings be safe after sending them to you?
    加 Created with Sketch.
    形状 Created with Sketch.
    We will keep them well and won't release them to the third party without your permission.
