A weak bracket can stop a strong vehicle from working well. It may look simple, but it holds parts in place under load, heat, and vibration. Metal stamping helps make brackets more accurate, repeatable, and cost-effective. In this article, you will learn how precision metal stamping improves bracket strength, fit, quality, and production value.
● Metal stamping improves automotive brackets by creating accurate holes, bends, ribs, tabs, and mounting points in repeatable production.
● Precision metal stamping is useful when brackets need stable quality across high-volume orders.
● Stamped brackets can be strong without being heavy, especially when ribs, flanges, and formed features are designed well.
● Good tooling reduces burrs, springback, misalignment, and assembly problems.
● Material choice matters because automotive brackets may face vibration, moisture, heat, and corrosion.
● Quality control should include first-article checks, in-process inspection, and final inspection.
● Compared with machining or laser cutting, metal stamping is often more efficient for repeated sheet metal bracket production.
● A capable supplier should support material selection, tooling design, surface treatment, and scalable production.
Automotive brackets do more than connect two parts. They support sensors, wiring, body panels, engine parts, exhaust systems, interior assemblies, and battery-related components. If a bracket bends too much, shifts position, or fails early, the problem can affect assembly quality and vehicle performance.
Precision is especially important because many brackets must match fixed holes, welded points, clips, and fasteners. A small error in hole position or bend angle can create poor fit. It may also slow assembly or cause vibration noise later.
This is why precision metal stamping has become a practical choice for many automotive bracket projects. It can form sheet metal into stable shapes while keeping repeatability across large batches. It also supports different materials and surface treatments for strength, corrosion resistance, and long-term use.
Note: For automotive brackets, “good enough” dimensions are rarely enough. Fit, repeatability, and process stability usually matter as much as strength.
Precision metal stamping improves automotive brackets by making each part more consistent. A stamping die controls the profile, holes, bends, and formed details. Once the tooling is validated, the process can repeat the same geometry many times.
This is important in vehicle assembly. Brackets must line up with mounting holes, bolts, clips, and nearby components. If one batch fits well and the next batch shifts slightly, assembly teams may face rework, delays, or higher scrap.
Precision stamping also reduces unnecessary secondary work. Clean punching, controlled bending, and proper die clearance can reduce burrs and edge defects. Better edges improve safety during handling. They also help coatings and surface finishes bond more evenly.
Another benefit is stronger geometry. A bracket does not always need thicker metal to become stronger. Stamped ribs, beads, flanges, and bends can improve stiffness while keeping weight under control. This matters in automotive design, where every part must balance strength, weight, and cost.
Tip: Add ribs or flanges early in the bracket design stage. They often improve stiffness without increasing material thickness.

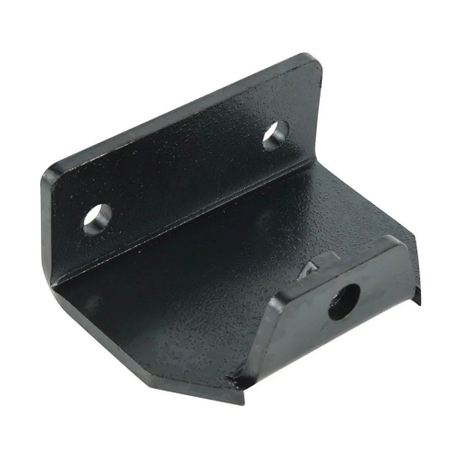

Automotive brackets often need several features in one small part. Metal stamping can create these features in a planned sequence. This makes the bracket easier to produce and easier to assemble.
Common stamped features include:
Stamped Feature | How It Helps Automotive Brackets |
Mounting holes | Improve bolt, screw, and clip alignment |
Bends and flanges | Add shape, stiffness, and positioning support |
Ribs and embosses | Increase strength without extra weight |
Slots and tabs | Support adjustment, locking, or assembly location |
Trimmed edges | Improve fit and reduce interference |
Formed lips | Reduce flexing and improve structural stability |
The real value comes from combining these features in one controlled process. For example, a bracket may need two holes, one bend, one reinforcing rib, and one mounting tab. Precision metal stamping can make the part repeatable, instead of depending on several separate manual steps.
This improves quality and cost control. It also helps suppliers prepare for larger orders because the process is built around stable tooling.
Material choice affects how a stamped bracket performs. Automotive brackets may need high strength, good formability, corrosion resistance, or low weight. The best material depends on the bracket’s role and working environment.
Carbon steel is often chosen when strength and cost control matter. Stainless steel can help when corrosion resistance is more important. Aluminum is useful when weight reduction matters, but the design must manage forming limits and springback.
Precision metal stamping also depends on how the material behaves during forming. Some metals bend easily. Others may crack if the bend radius is too tight. Material thickness, grain direction, and surface condition can all affect the final part.
Surface treatment is also important. Automotive brackets may face moisture, salt, heat, oil, or road debris. Plating, powder coating, anodizing, or other finishes can help protect the part. The finish should match the bracket’s environment and assembly needs.
Note: Material and coating should be selected together. A strong bracket still may fail early if corrosion protection is weak.
Tooling is the center of precision metal stamping. A well-designed die controls how the material is cut, punched, bent, and formed. It also helps manage springback, burr size, and dimensional stability.
Progressive die stamping is often used when a bracket needs several operations. The metal strip moves through multiple die stations. Each station performs one step, such as piercing, forming, trimming, or bending. This improves speed and repeatability for high-volume bracket production.
Tool validation is just as important as tool design. Before full production, the supplier should check first samples against drawings and functional requirements. If hole position, bend angle, or flatness is not stable, the tooling should be adjusted before mass production starts.
Good tooling also reduces waste. When the strip layout is optimized, material use improves. When the process is stable, fewer parts need rework or rejection.
Tip: Review the bracket drawing with the stamping supplier before tooling starts. Small design changes can reduce tooling risk and long-term cost.
Metal stamping is not the only way to make automotive brackets. Laser cutting, bending, CNC machining, casting, and welding can also be used. The best method depends on volume, design complexity, material, and budget.
Laser cutting and bending are flexible for prototypes and small batches. They are useful when the design is still changing. However, they can become slower or more expensive when the same bracket is needed in large quantities.
CNC machining can produce accurate parts, but it is often less efficient for thin sheet metal brackets. It may remove more material and take more machine time. For flat or formed sheet metal brackets, stamping often offers better production speed.
Casting can create complex shapes, but it may add weight or require more finishing. Welded fabrication can handle large or heavy structures, but it may introduce distortion and extra inspection needs.
For repeated automotive bracket production, precision metal stamping often offers the best balance of accuracy, speed, repeatability, and unit cost.
Quality control should start before production. A good supplier checks the drawing, material, tooling plan, and critical dimensions first. This helps prevent issues before they become expensive.
During production, inspection should focus on the features that affect function. These may include hole diameter, hole position, bend angle, flatness, burr height, edge quality, and coating condition. For some brackets, load testing or assembly testing may also be needed.
A stable metal stamping process depends on more than one inspection step. First-article inspection confirms the first parts. In-process inspection monitors production stability. Final inspection checks the finished batch before shipment.
Documentation also matters. Automotive supply chains often need material records, inspection reports, and production traceability. These records help buyers confirm whether the parts meet project requirements.
Good bracket design makes stamping easier and performance stronger. Engineers should avoid placing holes too close to edges or bends. This can weaken the part or cause tearing during forming.
Bend radius should match the material and thickness. If the radius is too sharp, the material may crack. If springback is ignored, the final angle may not match the drawing.
Tolerances should also be practical. Tight tolerances should be used only where the bracket must control fit or function. Overly tight tolerances can raise tooling cost and slow production without improving real performance.
Designers should also consider assembly. If workers or robots need to install the bracket quickly, the part should support easy positioning. Tabs, slots, or locating features can reduce assembly errors.
Precision metal stamping improves automotive brackets through better fit, stronger forms, stable quality, and efficient production. Dongguan Hongxia Precision Machinery Co., Ltd. provides metal stamping, sheet metal processing, material support, surface treatment, and quality control services. Its manufacturing capability helps customers get accurate, durable, and production-ready stamped parts for demanding automotive applications.
A: Metal stamping forms sheet metal into brackets using dies, presses, cutting, and bending steps.
A: Precision metal stamping improves fit, repeatability, strength, and cost control in batch production.
A: For high-volume brackets, stamping is often cheaper after tooling costs are spread across parts.
A: Yes. Metal stamping can add ribs and flanges, improving stiffness without thicker material.
A: Poor tooling, wrong material, tight bends, springback, and weak inspection can cause defects.
