Author: Site Editor Publish Time: 2025-12-07 Origin: Site
In today’s fast-moving manufacturing world, 3 Axis CNC machining remains one of the most widely used and highly dependable subtractive manufacturing processes. Even though advanced technologies such as 5-axis machining and hybrid metal manufacturing are rising, 3-axis machining continues to evolve and maintain its strong position. According to recent studies, 3-axis machining is even expanding its value in hybrid additive–subtractive systems, where it enhances precision and surface finishing for metal parts formed through additive manufacturing. Likewise, research published in 2023 demonstrates how 3-axis milling can significantly improve both small-batch and large-batch part production, showing that its relevance is far from fading.
So why does 3-axis machining remain so essential in modern production? Think about transforming a raw block of metal into a stylish smartphone housing, a precision gear, or an internal electronic component. Any perfectly machined metal part you see—whether flat, grooved, drilled, or subtly contoured—has likely passed through a 3-axis CNC machine at some stage. From simple plates to functional mechanical components, 3-axis machines provide the accuracy, affordability, and repeatability needed by industries across the world.
Below, we’ll explore everything you need to know about 3 Axis CNC machining, from how it works to its applications and advantages—especially its powerful role in the electronics industry.
3-axis machining refers to a subtractive manufacturing process in which the cutting tool moves along three linear axes:
X-axis: Left ↔ Right
Y-axis: Front ↔ Back
Z-axis: Up ↔ Down
This controlled movement is guided by a computer program (G-code), enabling precise cutting, milling, drilling, and shaping of materials such as aluminum, steel, copper, plastics, and composites.
Although 3-axis machining is less complex than 4-axis or 5-axis machining, it remains a reliable choice for flat surfaces, pockets, grooves, slots, and stepped features. Think of it as a highly accurate carving machine—able to transform a digital 2D drawing into a clean, precise 3D part.
A standard 3 Axis CNC machining process follows six major steps:
Engineers create a digital model using CAD software, defining:
Exact geometry
Part dimensions
Tolerances
Surface features
The CAD model is translated into machine-readable G-code using CAM software, determining tool paths and cutting sequences.

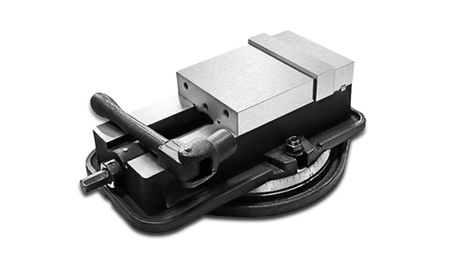

The workpiece is firmly clamped on the machine table.
The operator selects appropriate cutting tools.
The program is uploaded into the CNC controller.
The spindle-driven cutting tool follows programmed movements in X, Y, and Z to remove material layer by layer.
Coolant is applied to:
Reduce heat
Minimize tool wear
Improve surface finishing
After machining, the part may undergo deburring, cleaning, or inspection to ensure accuracy and quality.
A simple way to imagine 3-axis machining is like shaping a Lego block with a tool that can move precisely in three directions. It can create a huge variety of parts, though extremely deep contours or complex multi-angled surfaces require more advanced machines.
Different machines can perform 3-axis machining, including:
CNC Milling Machines – Ideal for pockets, slots, steps, flat surfaces, and engraving.
CNC Machining Centers – Offer drilling, tapping, and milling within one setup.
CNC Routers – Excellent for plastics, wood, and softer metals.
CNC Engraving Machines – Focus on fine patterns or small text.
CNC Lathes (3-axis variants) – Shape rotating cylindrical parts.
CNC Plasma Cutters – Cut through thick metal plates with high efficiency.
Each machine follows the same three movement axes but is optimized for different materials or part characteristics.
While 3-axis machining may appear simple, its versatility allows it to serve nearly every manufacturing sector. Below are key industries benefiting from 3-axis techniques:
Electronics rely heavily on precision metal and plastic parts. 3-axis machining supports:
Device enclosures (smartphones, routers, laptops)
Heat sinks and thermal components
Connector housings
PCB holding brackets
Battery frames and casings
Small gears and internal mechanisms for devices
Because electronic products require tight tolerances, excellent surface finishing, and consistency across batches, 3-axis machining is an ideal solution—especially for consumer electronics that demand sleek designs and functional precision.
Engine parts, brackets, housings, transmission components, and dashboard elements are often shaped using 3-axis machines.
Aircraft components such as brackets, engine casings, and structural elements require high accuracy and durability.
3-axis machining produces surgical tools, housings for medical devices, and components for implant manufacturing.

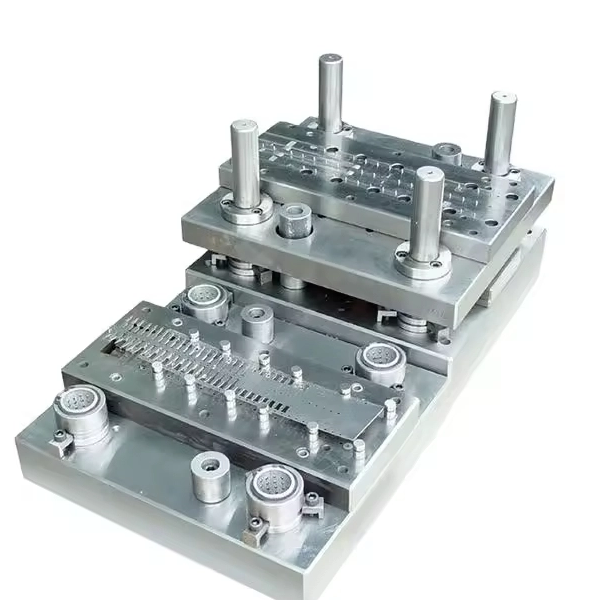

Injection-mold tools, cavities, and engraving molds are commonly created with 3-axis machines.
Structural parts, custom brackets, and metal sheets are shaped for machinery and building equipment.
Fine engravings and metal shaping for accessories rely on 3-axis accuracy.
3-axis machining offers several compelling benefits:
3-axis machines cost less than 4-axis or 5-axis machines, making them perfect for startups, small businesses, and mass production.
Flat surfaces, drilled holes, slots, and shallow contours are handled with ease.
Because tool paths are simpler, project turnaround is typically faster.
Computer-controlled movements ensure consistent part quality—even across large production batches.
Simpler mechanical structures result in reduced maintenance requirements.
Despite its strengths, 3-axis machining has some constraints:
Limited ability to produce complex curved surfaces
Requires multiple setups for multi-sided parts
More material waste for intricate shapes
Not suitable for deep undercuts or compound angles
For extremely complex geometries, 5-axis machining is often necessary.
| Feature | 3-Axis CNC | 5-Axis CNC |
|---|---|---|
| Movement | X, Y, Z | X, Y, Z + rotational A & B |
| Best For | Simple to moderate parts | Highly complex 3D shapes |
| Programming | Easier | Highly complex |
| Machine Cost | Lower | Higher |
| Efficiency for Multi-Sided Parts | Requires multiple setups | Often completed in one run |
| Applications | Brackets, gears, enclosures | Medical implants, aerospace blades, advanced prototypes |
3-axis machining remains ideal when the design does not require advanced angles or deep contours.
Whether you choose 3 Axis CNC Machining or a more advanced multi-axis process, the success of your parts depends heavily on selecting an experienced machining provider. A professional CNC machining company such as Yijin Hardware brings modern CNC centers, skilled operators, and the expertise to work with almost any material—from metals to plastics. For newcomers and experienced engineers alike, partnering with a reliable machining team ensures that each component meets high standards of performance, accuracy, and aesthetics.
As manufacturing continues to evolve, 3-axis machining remains a foundational and cost-effective technology—especially vital for industries such as electronics, where precision and consistency are key.
